⚙️ Elevate Your CNC Game with Precision That Never Quits

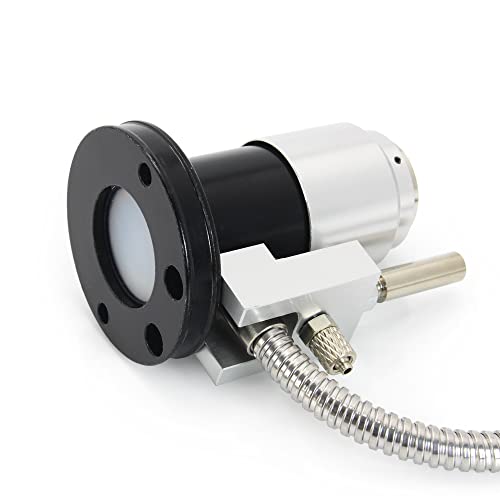

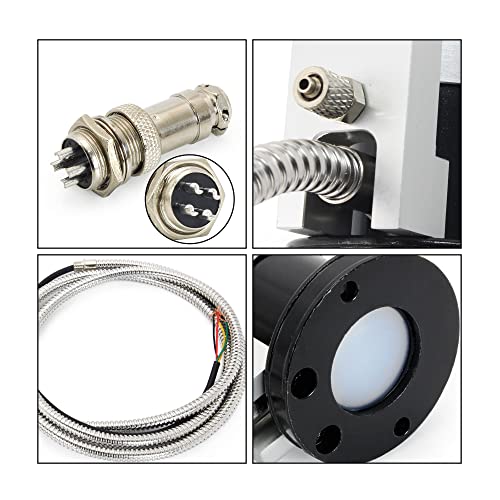

The RATTMMOTOR Mach3 CNC Automatic Tool Sensor Gauge is a high-precision, 4-wire tool setter designed for CNC routers and engravers. Featuring a 5mm stroke and 0.001mm repeat positioning accuracy, it offers durable IP67-rated dust and waterproof protection, a robust 3 million contact life, and a smart overtravel alarm to safeguard your tools. Its direct NC output simplifies integration, making it an essential upgrade for professional-grade machining accuracy and reliability.
| ASIN | B08LK93NTC |
| Are batteries included? | No |
| Best Sellers Rank | #151,357 in Home Improvement ( See Top 100 in Home Improvement ) #107 in Engraving Tools |
| Brand | RATTMMOTOR |
| Current Rating | 20 Milliamps |
| Customer Reviews | 3.1 3.1 out of 5 stars (11) |
| Date First Available | 7 December 2020 |
| Global Trade Identification Number | 00713721466467 |
| Item Dimensions LxWxH | 15 x 7 x 11 Centimeters |
| Item Height | 11 Centimeters |
| Item Weight | 450 g |
| Item Width | 7 Centimeters |
| Item dimensions L x W x H | 15 x 7 x 11 Centimeters |
| Item model number | H:65 |
| Manufacturer | RTM |
| Material | Aluminium |
| Maximum Supply Voltage | 24 Volts (DC) |
| Measurement Accuracy | 0.001mm |
| Measuring Range | 0mm to 5mm |
| Model number | H:65 |
| Mounting Type | Surface Mount |
| Net Quantity | 1.0 Count |
| Number of Memory Sticks | 1 |
| Output Type | NPN |
| Power Source | DC |
| Product Dimensions | 15 x 7 x 11 cm; 450 g |
| Sensing Distance | 5 Millimetres |
| Specific Uses For Product | CNC machining processes |
| Style | Modern |
| UPC | 713721466467 619191755172 769135849716 |
| Upper Temperature Rating | 100 Degrees Celsius |
| Voltage | 24 Volts |
A**G
This arrived dead. I decided to repair it rather than return. The internal mechanism is two microswitches so the primary sensor is not a piezoelectric as implied by the circuit diagram. One of the wires was loose. I resoldered them all as they were soldered at an angle and almost short circuiting and added some insulation. Also adjusted the microswitch position. Mechanically it is not terrible.
I**O
This is not a Normally Open tool height sensor like the title said. I have tested it and both the main and the overtravel contacts are Normally Closed. I have paid premium price thinking that I am getting the correct sensor. Now my machine build is delayed! .... False advertising. Buyers beware!
K**L
not as described. this tool setter doesn't have a led indicator or set screws to level the touch off pad. also the pad has a bit of wiggle to it as well.
