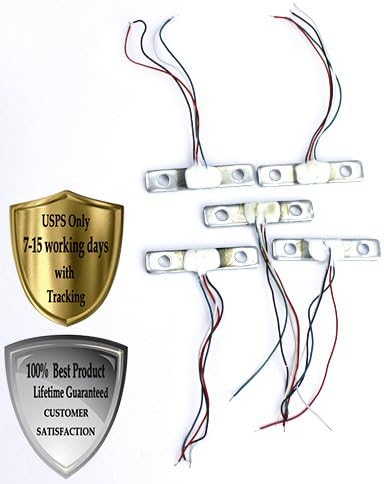

Lotoclub Electronic Scale Alloy Weighting Sensor Single point Load Cell pressure transducer 40kg
Product ID: 33786765
Secure Transaction
Frequently Bought Together
Description
- Construction: Alloy Steel
- Insulation Impedance: ≥2000Mω(50V/DC)
- Load cell display units also come with a variety of features.
- They are hydraulic, pneumatic and strain gauge load cells.
- Package include：1pcs load cell
Interface load cells all contain a full bridge circuit, which is shown in simplified form in Figure 1. Each leg is usually 350 ohms, except for the model series 1500 which has 700 ohm legs. Rated Load:40kg Rated Output: 1.0±10%mV/V Total Error: ±0.1%F.S Recommended Excitation Voltage: 5V～12V(DC) Zero Balance: ±2%F.S Input Impedance: 1000±5ω Output Impedance: 1000±2ω Insulation Impedance: ≥2000Mω(50V/DC) Safe Overload: 120%F.S Operating Temperature Range: (0～+40)℃ Construction: Alloy Steel Protection Class: IP65 Cable Size:4*200mm Wiring: EX+:Red EX-:Black Sig+:Green Sigt-:White Package include：1pcs load cell
