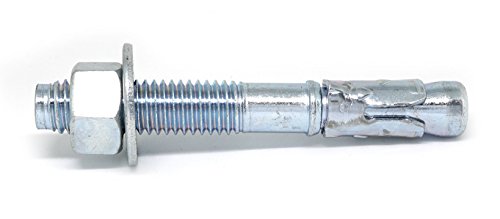

ITW Red Head Trubolt+ TB4C-1236 1/2" x 3-3/4" Seismic and Cracked/Uncracked Carbon Steel Wedge Anchor Zinc Plated (25 per Box) Replaces WS-1236

Descripción

ApplicationsThe anchor is made from Carbon Steel, and is Zinc Plated. This anchor is designed for use in Concrete only, and should never be used in block or brick base material. EnvironmentThe anchor is designed for use in a Dry environment.Head Style The anchor is a head Hole Diameter/Bit DiameterThe anchor requires a 1/2" hole to be drilled in the base material (Concrete only). The hole should be drilled with carbide tipped bit that meets ANSI standards and used in a hammer drill.Diameter of Anchor The diameter of the anchor is 1/2".Length Anchor The length of the anchor is 3-3/4"Thread LengthThe length of the threads on the anchor is Fully Threaded in length.Minimum EmbedmentThe minimum anchor embedment into the concrete is 2-1/2". Therefore, the anchor must be installed so that a minimum of 2-1/2" of the anchor is embedded into the concrete.Fixture Hole DiameterThe hole in the fixture or material being fastened must be larger than the designated diameter of the anchor. The 1/2" diameter anchor requires the hole in the fixture to be 5/8".
