Infrared motion detector indoor
The infrared sensor detects movements of people, large animals and vehicles within a detection range of up to 10m at a detection angle of 190° (on a free surface) and switches on the connected lighting. After an adjustable time of approx. 10 seconds to 30 minutes, the motion detector switches off again. With the help of a controller, the switch-on sensitivity of the device can be regulated depending on the ambient brightness (3-2.000 LUX). The detection area can be adjusted in a targeted manner thanks to the modifiable cover. The cover can be cut to size as desired.

If constant lighting is desired, it is also possible to deactivate the sensor temporarily. The motion detector can be switched on and off manually or it switches on when there is movement and off again after a preset time. The adjustment controls are located directly above the sensor so that they can be adjusted at any time.

This flush-mounted motion detector is suitable for wall mounting

Product features
Operating voltage: 220-240V AC 50Hz
Installation: 3-wire
Max. Power consumption: Max. 1,200W with usual lamps, max. 600W with energy saving lamps and LED lamps
Power consumption on standby: 0.5W
Switch: On, off or detector
Detection speed: 0.6-1.5m/s

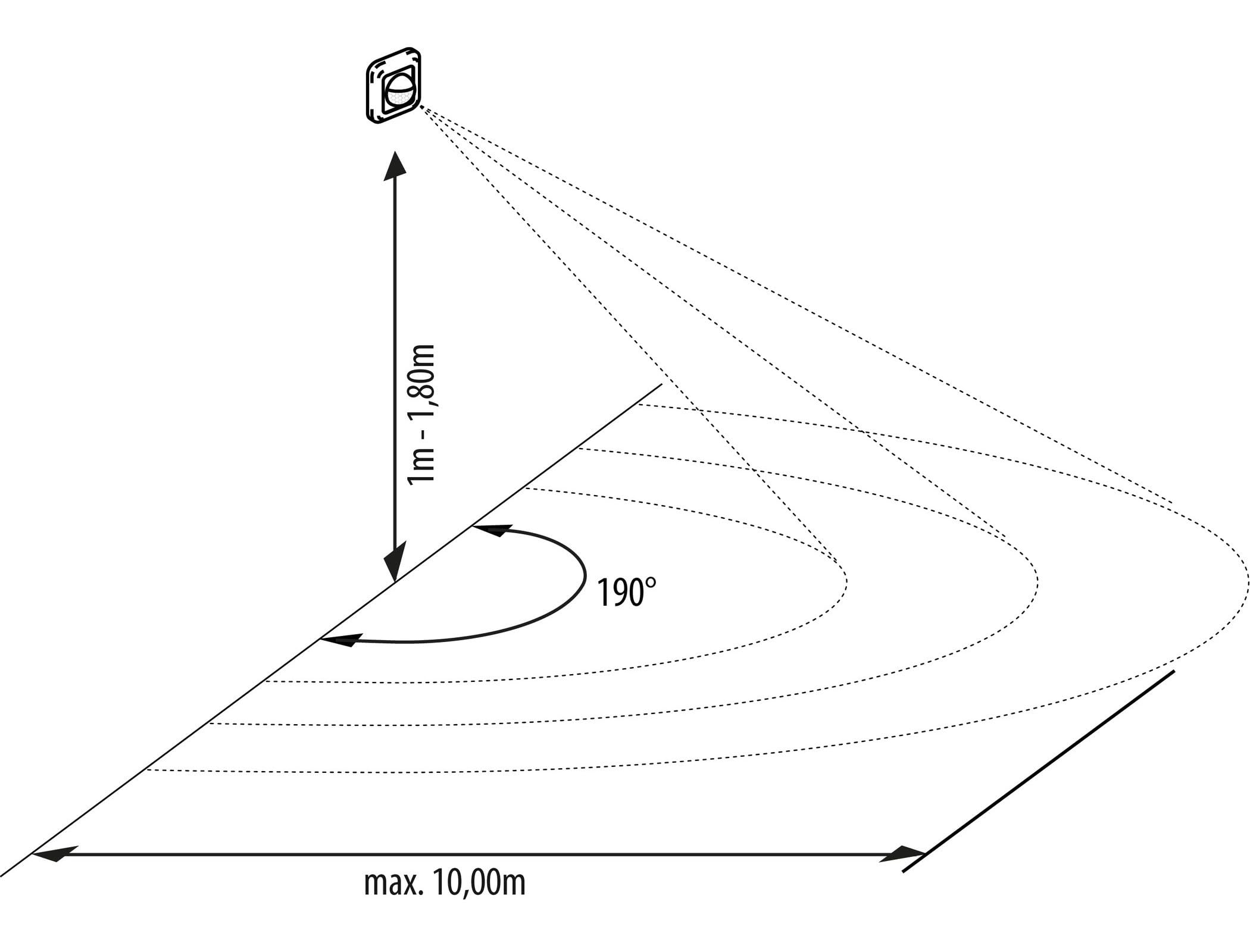

Detection range: Max. 10m (<24°C)/190°
Ambient brightness: 3-2,000LUX
Protection grade: IP20
Switch-off delay: Min. 10s +/-3s - Max. 30min +/-2min
Ambient temperature: -20° to +40°C
Humidity: <93%
Suitable for flush-mounted boxes: 60mm
Suitable for cavity boxes: 68mm

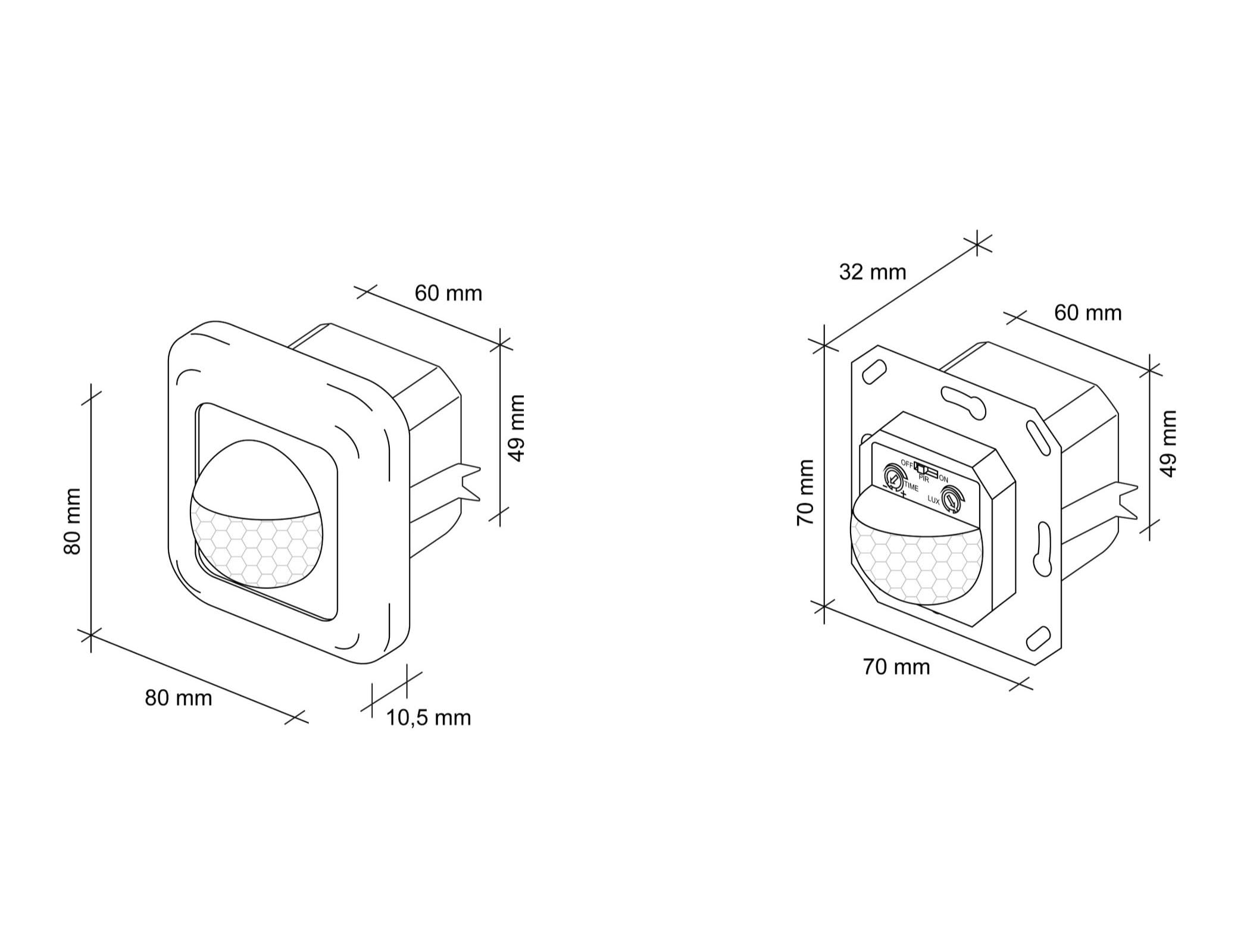

Installation dimensions: 60x49x32mm
Product dimensions: 80x80x43mm
Housing material: Plastic

Included in delivery:
1x IR motion detector

Manufacturer	SEBSON
Part number	IR_WAL_E
Item Weight	90 g
Product Dimensions	8 x 8 x 4.3 cm; 90 g
Item model number	IR_WAL_E
Size	Pack of 1
Color	White
Style	Modern
Finish	Uncoated
Material	Plastic
Shape	Square
Power source type	AC
Voltage	230 Volts
Wattage	600 watts
Installation Method	Wall-Mounted
Item Package Quantity	1
Coverage	max. 10m / 190°
Plug Profile	Wall Mount
Switch Style	Slide Switch
Batteries Included?	No
Batteries Required?	No
tech_spec_battery_description_toys	Battery Not Included

SEBSON PIR Sensor Light Switch Indoor, Wall Flush Mounted, Infrared Motion Sensor, LED suitable, IP20, Range max. 10m/190°, Installation 60x49x32mm
