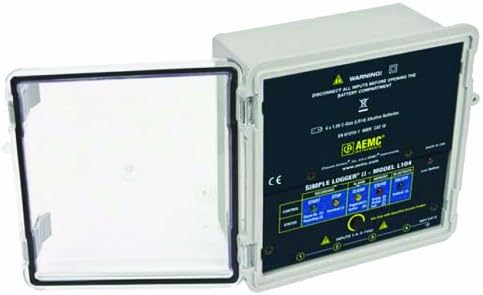

AEMC L104 Simple Logger II Four-Channel Current Data Logger, 100 kilohms Resistance, 1200A AC Current

Descripción

AC Current Logger. TRMS voltage recording up to 1200A. 64 samples per cycle. Programmable storage rates from 8 per second to 1 every day. Four user selectable storage modes. Stores up to 1,000,000 measurements in non-volatile memory. Up to 180 days of operation from standard alkaline batteries at 1 second storage rate. Lightweight, compact, fits anywhere. Six LED indicators quickly and clearly display logger status. Includes free DataView software for data storage, real-time waveform display, analysis and report generation. Wireless Bluetooth data communication (Bluetooth module included). 600V CAT IV; 1000V CAT III. Applications: Single-phase or poly-phase load monitoring, Neutral and ground current monitoring, Harmonic current monitoring using DataView software, Intermittent problem detection, Current load monitoring. One connector per channel. Voltage range: 0 to 1Vac (output from probe). Accuracy (50/60Hz): 0 to 10mV unspecified 10 to 50mV: +/-(0.5 percent of Reading + 1mV), 50 to 1000mV: +/-(0.5 percent of Reading + 0.5mV). Sample Rate: 64 samples/cycle. Storage rate: Programmable from 125ms to 1 per day. Storage mode: Start/Stop, FIFO, extended recording mode (XRM) and store on alarm. Recording length: 15 minutes to 8 weeks, programmable using DataView. Memory 1,000,000 measurement (2MB). The recorded data is stored in non-volatile memory and retained even if the battery is low or removed. Communication: Bluetooth (Class 2). Power source: 4 x 1.5V C-cell alkaline batteries. Battery life: Up to > 180 days or more (dependent on storage rate). Vibration: IEC 68-2-6 (1.5mm, 10 to 55Hz). Shock: IEC 68-2-27 (30G). Drop: IEC 68-2-32 (1m). Measures 5-57/64" width by 5-57/64" height by 3-11/16" depth.
