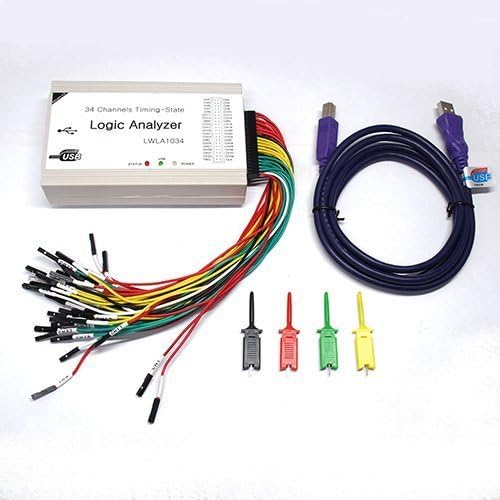

100MHz 34 Channels Logic Analyzer Timing-State Logic Analyzer 16 CH Counter

Descripción

Sampling rate can be set to 100M, 50M, 20M, 10M, 5M ... until 100HZ. - Corresponding to the sampling resolution of 10ns, 20ns, 50ns, 100ns to 10ms - 8-way mode, the sampling rate of up to 250M - 34-channel digital signal input, the input voltage range from-1V to 6V, higher than 1.6V is high level, regard as logic 1, or regard as logic 0. - Threshold precision, the internal input signal protection mechanisms. - Using USB 2.0 high speed interface chip, it can be compatible with USB2.0 and USB1.1 data transfer. - Data sampled can be displayed in a group you created and can display as HEX, OCD, DEC format. - Supporting decoding the SPI, UART, the I2C, PWM - Data transmission in stable, good compatibility - Supporting for protocol analysis, protocol support SPI, UART, I2C, the PWM - High-speed asynchronous SRAM, bits wide for 32 the capacity 1MBYTE, memory bandwidth 400MBYTES/SECOND - Supporting WIN2000, XP, VISTA, WIN7-32-bit WIN7-64 bit operating system - Completing support a variety of trigger - Supporting the High and level of edge-triggered - High and low level trigger and the automatic acquisition - CY7C68013A (USB Interface Chip) + EP2C5T208 (FPGA) + CY7C1361 (Storage Memory). ** Logical analysis instrument/ Bus Analyzer/ Protocol Analyzer/ Frequency meter/ Logic pen Package Includes 1x 34 Channels Logic Analyzer 4x Clips 1x 30cm 40 PIN Cable 1x CD Driver
