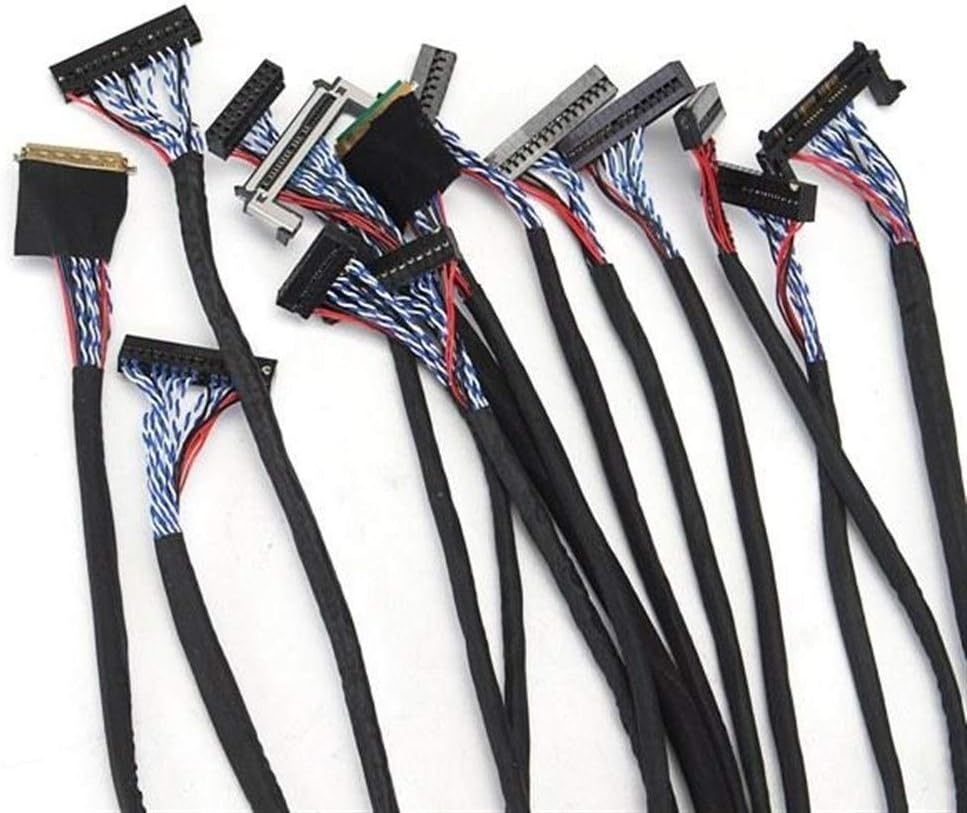

PC Components, 14Pcs Universal FPC/LVDS Display Cable Support For 10-65 Inch Screen LCD Controller Board

Descripción

For friends, family or children who are obsessed with electronics, programming or robotics, this is a good choice and the perfect gift, the first step in their e-tours!We are very grateful and accept the advice of all customers to improve sales. If you are not satisfied, please contact our customer service department for the best solution.Specifications:Fit For: 10-65 inch screenColor: as picturesSocket Length: 20mm, 30mmName: Screen cableModel: 602368Features:1. Drive board common, support 10-65 inch screen monitor repair, commonly used LCD LVDS screen line.2. The general board LVDS interface 30 pin is basically defined as follows:1 2 3 power supply4 5 6 ground wire7 8 9 10 11 12 Three sets of data lines (00- 00+ 01- 01+ 02- 02+)13 14 ground line15 16 clock lines (0C- 0C +)17 18 (03 - 03+)Here is a single 8 commonly used five groups.19 20 21 22 23 24 Three sets of data lines (0E- 0E + E1-E + E2- E2 +)25 26 ground wire27 28 clock line (EC-EC +)29 30 data lines (E3- E3 +)Model:1 x DF14-20Pin-S61 x DF14-20Pin-S81 x FIX-30Pin-S8 (power on left) bit1 x FIX-30Pin-S8 (power on right) bit1 x FIX-30Pin-D6 (power on left) bit1 x FIX-30Pin-D8 (power on left) bit1 x FIX-30Pin-S8 (power on left) bit (for 17''-42'' screen)1 x FIX-30Pin-S8 (power on right) bit (for 17''-42'' screen)1 x FPC-LVDS-30Pin-S8 (power on left) bit1 x FPC-LVDS-30Pin-S8 (power on right) bit1 x LP-40Pin-S6 (LED laptop SD)1 x LP-40Pin-D6 (LED laptop HD)1 x FIX-51Pin-D8 (power on left) bit (Most universal LVDS cable for 32''-65'' screen)1 x FIX-51Pin-D8 (power on right) bit (Most universal LVDS cable for 32''-65'' screen)Note: Due to the manual measurement, there might be some error.Package
